Anti-static Laminated Filter Bag with Grid Pattern

Anti-static Laminated Filter Bag with Grid Pattern (Specialized for Dust Explosion Prevention and Powder Processing)

get a quote

get a quote

If you have any questions about our product range or services, please fill out the contact form below and we will be in touch promptly
Share

  • Estimated Delivery:Sep 01 - Sep 05

Product description
Shipping & Return

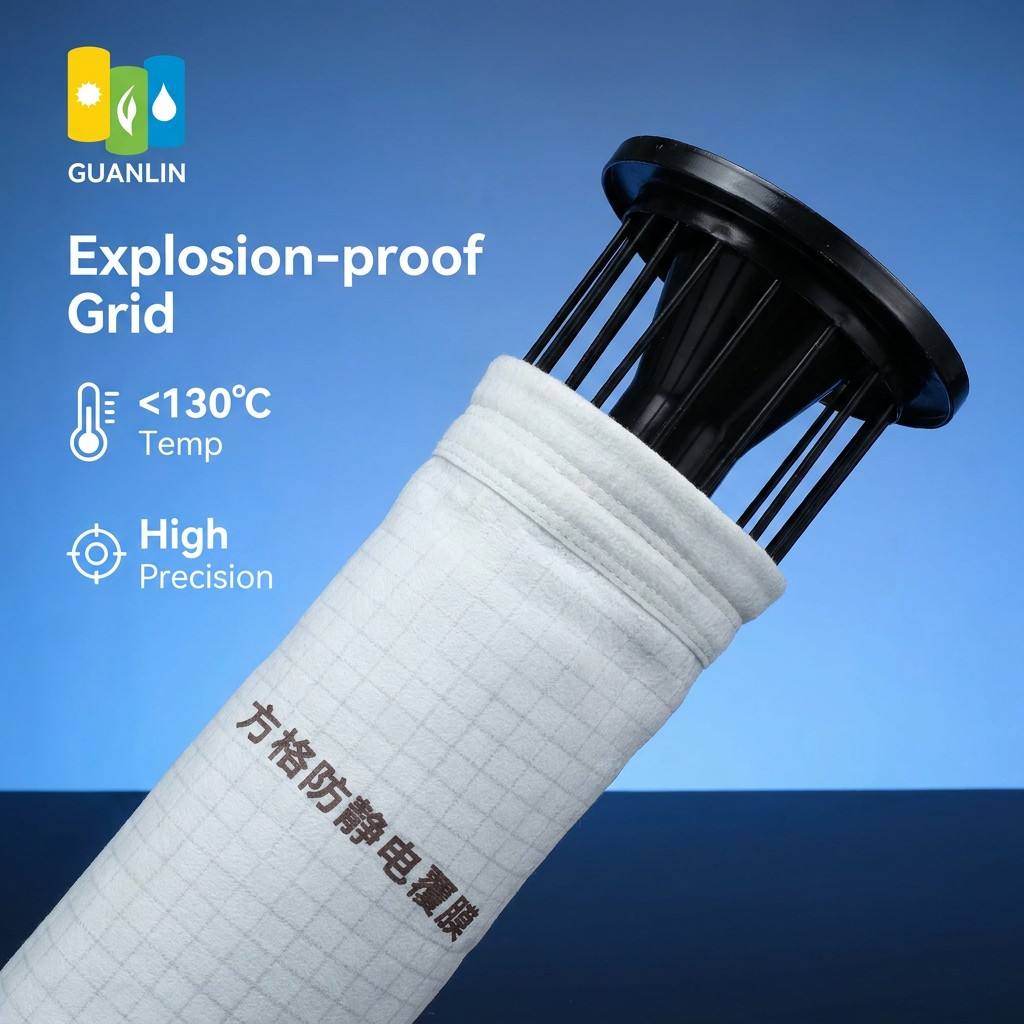

Grid Anti-static PTFE Membrane Filter Bag

Designed for explosive dust and powder processing applications, this filter bag uses conductive fibers woven into the polyester base fabric to form a square-grid conductive network. The PTFE membrane surface blocks fine powder penetration, supports easy cleaning, and helps improve moisture resistance.

Product Features

Suitable for continuous operation at 130℃ and instant temperature resistance up to 150℃. The filter bag provides anti-static performance, fine dust interception, easy dust cleaning, moisture resistance and stable filtration for dry powder working conditions.

Technical Specifications

Product NameGrid Anti-static PTFE Membrane Filter Bag
Material StructurePolyester base fabric mixed with conductive fiber
Surface TreatmentPTFE microporous membrane
Continuous Temperature130℃
Instant Temperature150℃
Material Weight550g/㎡
Air Permeability140–160L/㎡·s
Acid ResistancepH 4–7
Alkali ResistancepH 7–9

Applicable Industries

Flour processing Aluminum and magnesium powder grinding Lithium battery powder Chemical powder materials Pharmaceutical crushing Wood sanding Plastic powder processing Graphite and carbon black recovery

Industry Pain Point Solution

Ordinary filter bags may generate static electricity through friction, creating fire or explosion risks in flammable dust environments. Ordinary anti-static filter media without membrane treatment may allow fine powder penetration and increase equipment pressure difference. This filter bag combines a stable square-grid conductive structure with a PTFE membrane surface to discharge static electricity and capture fine dust. Under dry powder conditions, the service life can reach 12–28

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
